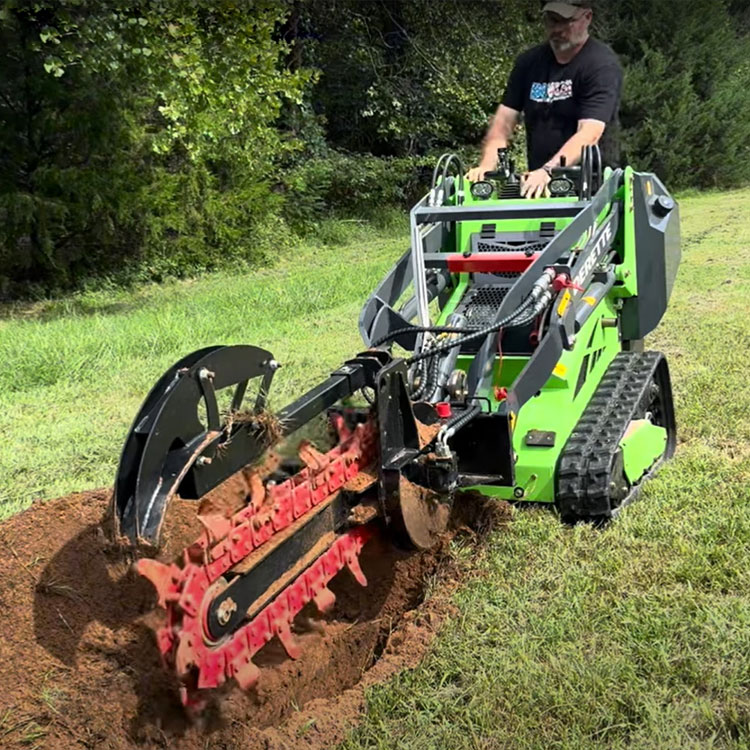

Trencher for mini skid steer loader
The Trencher is a common attachment for mini skid steer loaders. Its structure is simple, rational, and reliable. The frame is constructed using channel steel, providing excellent rigidity. The transmission system employs a single-stage spiral bevel gear drive, offering strong load-bearing capacity. A novel and unique soil disperser ensures uniform soil distribution, allowing for the digging of both rectangular and trapezoidal trenches. An added limit device guarantees the straightness and consistent depth of the trench.
Parameters： | ||
Item | Metric | U.S. |
Size | 1600*630*730 mm | 63*25*29 inch |
Weight | 150 Kg | 331 Lb |
Max. Trenching Depth | 800 mm | 31 inch |
Single Trenching Width | 155 mm | 6 inch |
Chain Speed | 128 m/min | 420 ft/min |

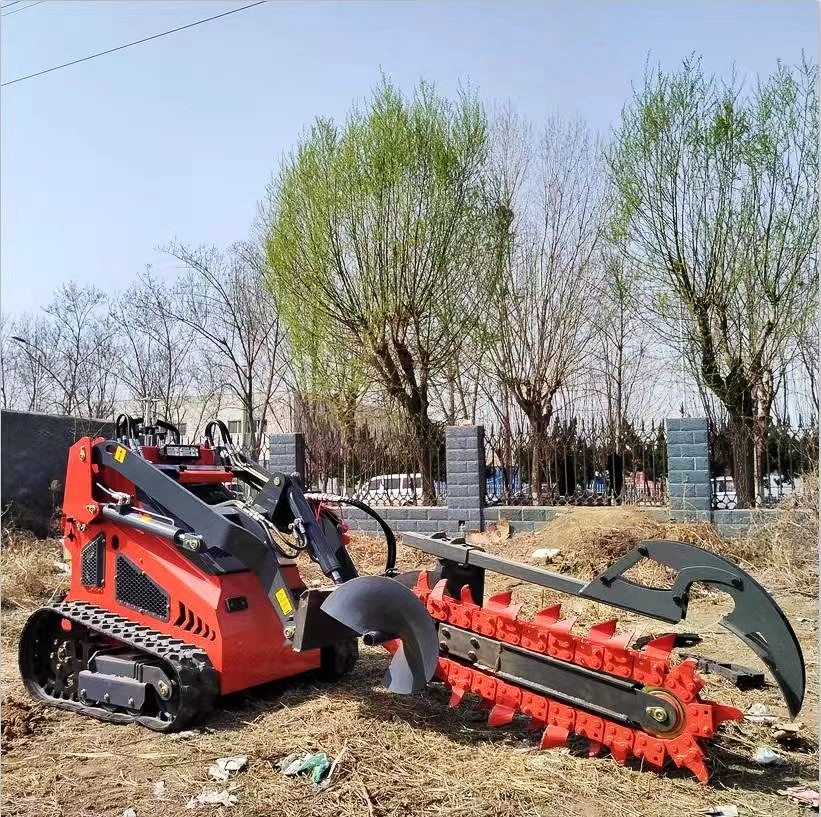

Derette Trencher for mini skid steer loader

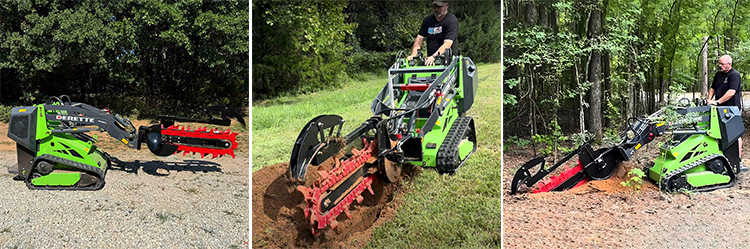

The Trencher for Mini Skid Steer Loader is a specialized tool designed for trench digging, commonly used for laying pipes, cables, or irrigation systems. This trencher can be attached to a mini skid steer loader, transforming it into a multifunctional tool.
Product Features：
Flexible Operation: As an attachment for the mini skid steer loader, it can operate flexibly in tight spaces.
Efficient Digging: It can quickly and accurately dig trenches, enhancing work efficiency.
Labor Saving: Compared to manual digging, the Trencher significantly reduces labor and time requirements.
Quick Installation: Using a universal quick-connect system, it can be rapidly installed and removed from the mini skid steer loader, improving work efficiency.
Hydraulic Control: Operated via the hydraulic system of the mini skid steer loader, making it easy to control.
Versatile Applications: Not only can it be used for trench digging, but it can also be combined with other attachments to perform various tasks.
Depth Adjustment: The digging depth can be adjusted according to needs, adapting to different construction requirements and significantly improving digging quality and efficiency.
Simple Operation: It can dig trenches at a fast rate of 500-700 meters per hour, with a low failure rate and simple practicality.
The Trencher for Mini Skid Steer Loader is a new type of trench-digging equipment, specifically designed for laying pipes, cables, and irrigation systems in agricultural and urban settings. As society continues to advance, the Trencher is gradually gaining wider use both domestically and internationally, becoming an efficient and reliable construction tool.
